Description

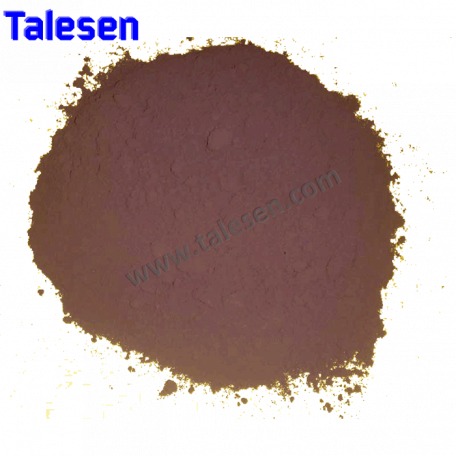

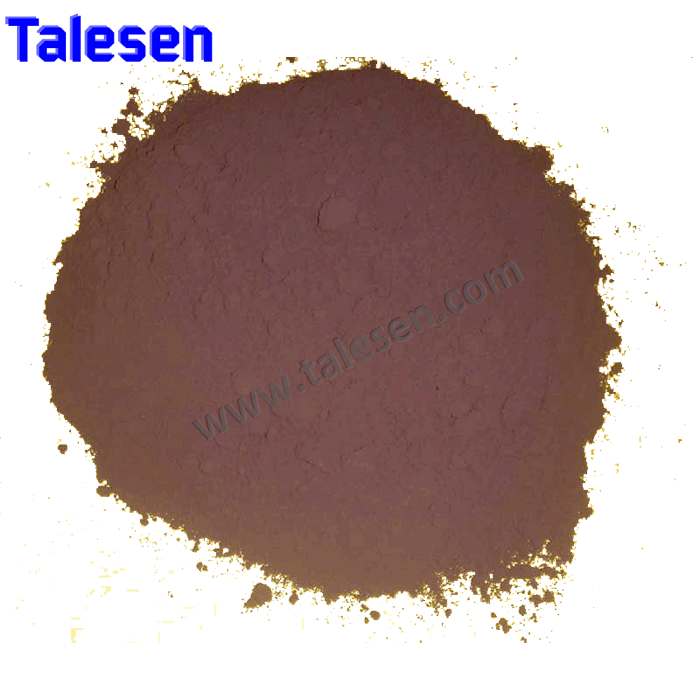

Isotropic Sintered Ferrite Powder for Dry Pressing series products,TA-SDIP series are used in the applications whose magnetic requirements are not very high. These applications often includes the loudspeaker, micromotor for electronic toys, advertising industry and stationery industry. The main element is barium among the compound. The main type is isotropic. More characteristics are shown in the table below.
|
Grade
|
Material
|
Br(mT)
|
HCB(kA/m)
|
HCJ(kA/m)
|
(B·H)max (kJ/m3)
|
Shrinkage Rate%
|
Fine Powder(μm)
|
| TA-SDIP-1 |
BaFe12O19
|
200-230
|
130-138
|
200-230
|
7.5-8.5
|
14.0-16.0
|
0.8-1.0
|
| TA-SDIP-2 |
BaFe12O19
|
210-220
|
126-144
|
245-280
|
6.9-8.5
|
13.6-15.6
|
0.8-1.0
|
| TA-SDIP-3 |
BaFe12O19
|
230-240
|
142-152
|
240-270
|
8.5-9.2
|
14.1-15.9
|
0.8-1.0
|
